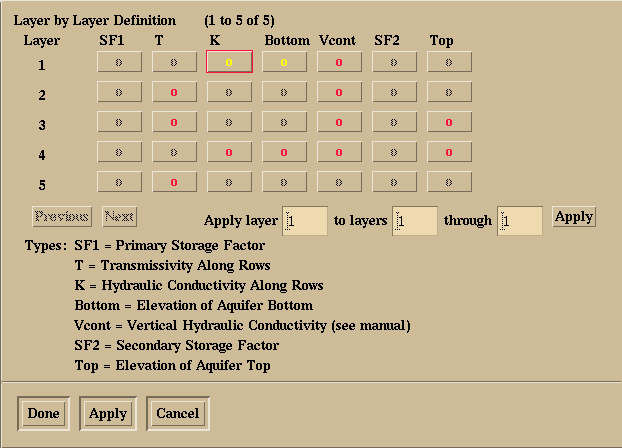

Figure 15.7: Layer by Layer Definition pop-up dialog. For each layer, depending on the layer type, the position of the layer, whether the model is steady-state or transient, etc. various arrays need to be defined for each layer. This dialog specifies which arrays are needed.
